Mil-Spec Wire & Cable
SAE AS22759

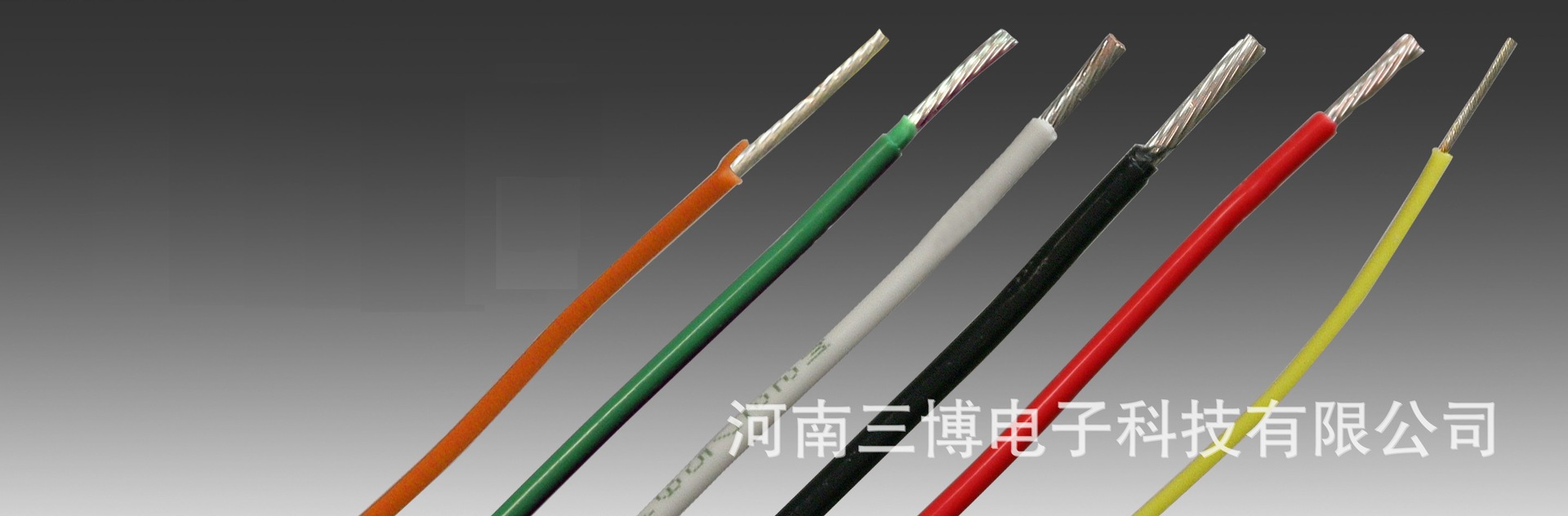

Offering seamless, light-weight, and dual-layer PTFE/polyimide tape insulation, SAE AS22759/191 is designed with superior UV laser marking characteristics, scrape abrasion, and wet arc propogation resistance. A silver-plated copper conductor and a temperature rating of 200°C make this wire optimal for multi-purpose aerospace or commercial applications. The non-seamless version of this wire is SAE AS22759/91.
Conductor: Silver-plated copper
Insulation: Seamless PTFE/polyimide/PTFE tape (inner) and PTFE tape (outer)
Voltage Rating: 600V
Temperature Rating: 200°C
SAE AS22759/191（M22759/191）
軍規電線電纜
SAE AS22759
提供無縫，重量輕，和雙層雙層聚四氟乙烯絕緣，SAE AS22759/191線纜的設計具有優異的紫外激光標記特征以及刮去磨損和濕電弧擴展抗力。鍍銀銅導體和200℃的溫度等級使得該線纜具有航空航天或商業應用中的最佳用途。這種非無縫導線的版本正是m22759/191線纜
導體：鍍銀銅
絕緣材料：無縫PTFE /聚酰亞胺/聚四氟乙烯帶（內）和PTFE膠帶（外）
額定電壓：600V
額定溫度：200℃
SAE AS22759/ 191訂貨代碼
| PART NUMBER | AWG | Conductor Stranding | Approx LBS/MFT | min O.D. (in) | Max O.D. (in) | Cond. Material | Max. Temp | Voltage |
| M22759/191/26-0 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-1 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-2 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-3 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-4 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-5 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-6 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-7 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-8 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191/26-9 | 26 | 19/38 | 1.43 | 0.0175 | 0.0194 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-0 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-1 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-2 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-3 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-4 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-5 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-6 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-7 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-8 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| M22759/191-24-9 | 24 | 19/36 | 1.93 | 0.0225 | 0.0244 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-0 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-1 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-2 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-3 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-4 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-5 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-6 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-7 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-8 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-22-9 | 22 | 19/34 | 2.85 | 0.0285 | 0.0304 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-0 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-1 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-2 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-3 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-4 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-5 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-6 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-7 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-8 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| m22759/191-20-9 | 20 | 19/32 | 4.38 | 0.0365 | 0.0384 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-0 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-1 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-2 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-3 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-4 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-5 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-6 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-7 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-8 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-18-9 | 18 | 19/30 | 6.6 | 0.0455 | 0.0484 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-0 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-1 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-2 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-3 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-4 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-5 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-6 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-7 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-8 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-16-9 | 16 | 19/29 | 8.3 | 0.0515 | 0.0544 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-0 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-1 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-2 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-3 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-4 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-5 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-6 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-7 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-8 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-14-9 | 14 | 19/27 | 12.6 | 0.0645 | 0.0684 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-0 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-1 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-2 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-3 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-4 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-5 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-6 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-7 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-8 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| M22759/191-12-9 | 12 | 37/28 | 19.6 | 0.0835 | 0.0874 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-0 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-1 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-2 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-3 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-4 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-5 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-6 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-7 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-8 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| m22759/191-10-9 | 10 | 37/26 | 30.6 | 0.106 | 0.11 | Silver-plated copper | 200°C | 600V |
| The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681. | ||||||||
| 0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White | ||||||||
| Example: Size 20, white - M22759/191-20-9; white with orange stripe -M22759/191-20-93. | ||||||||
