APPLICATIONS:（應用：）
Aerospace applications where medium weight, abrasion resistance and mechanical durability are required（航空航天應用，中等重量，耐磨性和機械耐久性是必需的）
CHARACTERISTICS:（特性：）
Stranded nickel plated high strength copper alloy conductor（絞合渡鎳高強度銅合金導體）
Extruded Polytetrafluoroethylene (PTFE) insulation, color coded in accordance with MIL-STD-681膨化聚四氟乙烯（PTFE）絕緣，按照mil-std-681顏色編碼
TEMPERATURE:（溫度：）
200°C
VOLTAGE RATING:（額定電壓：600伏）
600 volts
MIL-W-22759/23 | SAE AS22759/23
MIL-W-22759/23 (M22759/23)
SAE AS22729
MIL-Spec Wire
600V, 260°C

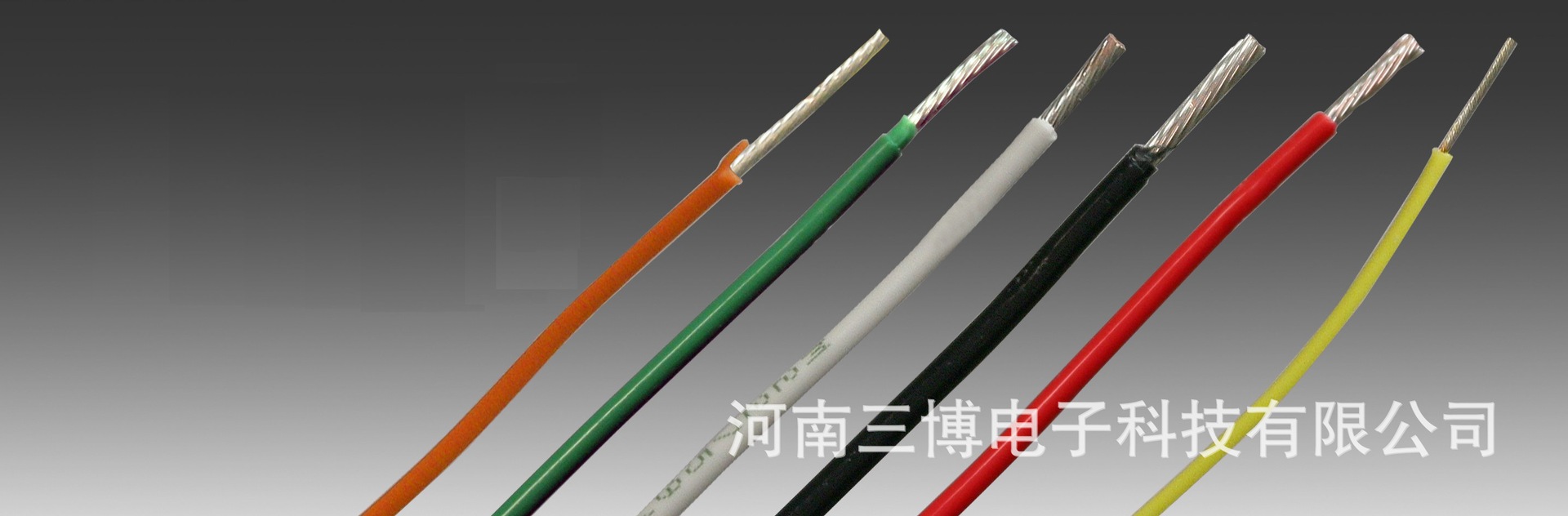

MIL-W-22759/23 (M22759/23) Wire Description:
Conductor: Nickel-plated copper alloy
Insulation: Extruded PTFE
MIL-W-22759/23 (M22759/23) Wire Characteristics:
Voltage Rating: 600 Volts
Temperature Rating: 260°C
MIL-W-22759/23 (M22759/23) Wire Applications:
The durable M22759/23 wire is suitable for use in aircraft engines and other military, government, or civilian applications where abrasion is present.（耐用的M22759/23導線適用于航空發動機和其他軍事，政府和民間領域存在耐磨損應用）
M27500 Component TN
Mil-Spec M22759/23
SAE Spec AS22759/23
Cond. Material Nickel-Plated Copper Alloy (High Strength)
Insul. Material Polytetrafluoroethylene (PTFE)
Max. Temp 260°C
Voltage 600
|
PART NUMBER |
AWG |
Conductor Stranding |
Approx LBS/MFT |
min O.D. (in) |
Max O.D. (in) |
Cond. Material |
Min. Temp |
Max. Temp |
Voltage |
|
訂貨代碼 |
線規 |
導體絞合 |
約磅/MFT |
最小外徑 |
最大外徑 |
導體材質 |
最小溫度 |
最大溫度 |
電壓伏 |
|
m22759/23-28-0 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
200°C |
600 |
|
m22759/23-28-1 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
200°C |
600 |
|
m22759/23-28-2 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
200°C |
600 |
|
m22759/23-28-3 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-4 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-5 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-6 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-7 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-8 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-28-9 |
28 |
7/36 |
1.34 |
0.031 |
0.035 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-0 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-1 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-2 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-3 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-4 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-5 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-6 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-7 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-8 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-26-9 |
26 |
19/38 |
1.92 |
0.036 |
0.04 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-0 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-1 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-2 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-3 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-4 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-5 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-6 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-7 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-8 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-24-9 |
24 |
19/36 |
2.63 |
0.041 |
0.045 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-0 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-1 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-2 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-3 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-4 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-5 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-6 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-7 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-8 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-22-9 |
22 |
19/34 |
3.73 |
0.047 |
0.051 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-0 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-1 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-2 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-3 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-4 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-5 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-6 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-7 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-8 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
|
m22759/23-20-9 |
20 |
19/32 |
5.44 |
0.056 |
0.06 |
Nickel-Plated Copper Alloy (High Strength) |
-55°C |
260°C |
600 |
| The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681. | |||||||||
| 0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White | |||||||||
| Example: Size 20, white - M22759/23-20-9; white with orange stripe -M22759/23-20-93. | |||||||||
