MIL-W-22759/14 | SAE AS22759/14

MIL-W-22759/14（m22759/14）| SAE AS22759/14
MIL-W-22759/14
SAE AS22729
MIL-Spec Wire

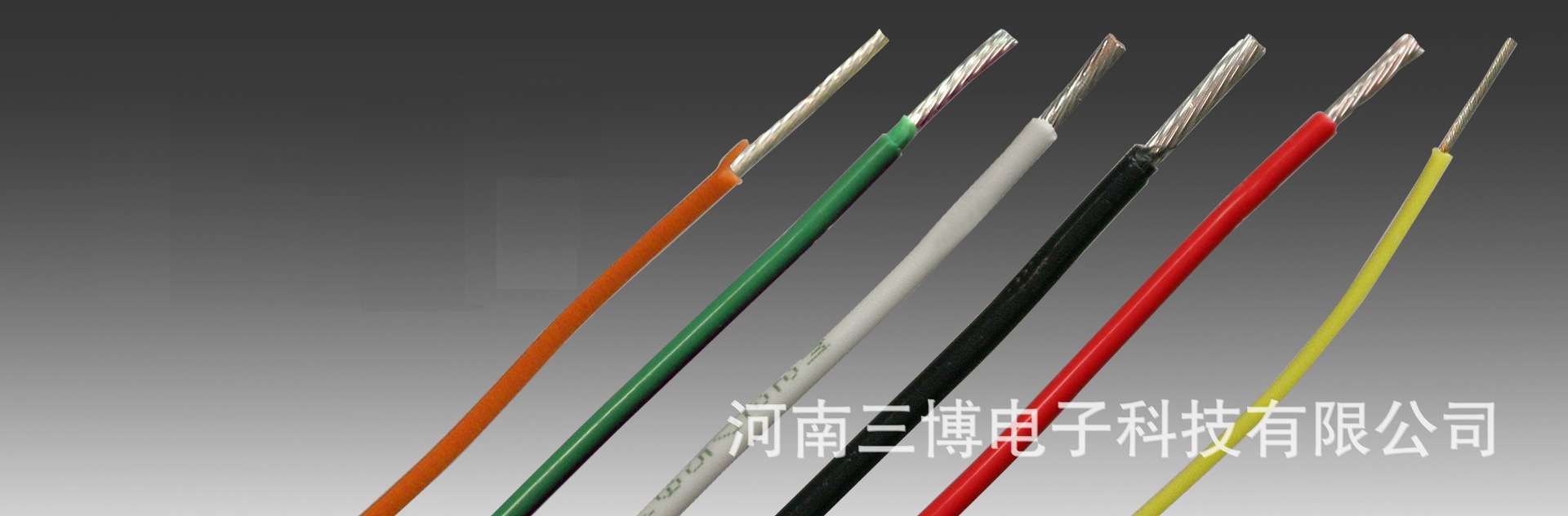

M22759/14 Cable Construction:(m22759/14 線纜結構)
Conductor: Tin Coated Copper(鍍錫銅導體）
Insulation: Extruded FEP（絕緣：聚全氟乙丙烯（FEP）
Jacket: PVDF（護套：聚偏氟乙烯（PVDF）
M22759/14 Cable Ratings:（m22759線纜等級）
Voltage Rating: 600 Volts（額定電壓：600伏）
M22759/14Temperature Rating: 135°C（m22759/14額定溫度：135攝氏度）
M27500 Component： CB （m27500代碼：CB)
線規范圍26-12

PART NUMBER	AWG	Conductor Stranding	Approx LBS/MFT	Nom. Dia. of Cond.	min O.D. (in)	Max O.D. (in)	Cond. Material	Min. Temp	Max. Temp	Voltage
m22759/14-26-0	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-1	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-2	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-3	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-4	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-5	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-6	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-7	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-8	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-26-9	26	19/38	1.8	0.019	0.035	0.039	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-0	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-1	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-2	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-3	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-4	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-5	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-6	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-7	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-8	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-24-9	24	19/36	2.47	0.024	0.04	0.044	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-0	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-1	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-2	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-3	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-4	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-5	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-6	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-7	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-8	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-22-9	22	19/34	3.53	0.03	0.045	0.051	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-0	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-1	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-2	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-3	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-4	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-5	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-6	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-7	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-8	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-20-9	20	19/32	5.13	0.038	0.053	0.059	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-0	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-1	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-2	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-3	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-4	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-5	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-6	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-7	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-8	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-18-9	18	19/30	7.64	0.047	0.063	0.069	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-0	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-1	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-2	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-3	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-4	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-5	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-6	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-7	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-8	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-16-9	16	19/29	9.34	0.053	0.067	0.075	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-0	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-1	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-2	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-3	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-4	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-5	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-6	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-7	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-8	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-14-9	14	19/27	14.4	0.067	0.083	0.091	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-0	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-1	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-2	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-3	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-4	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-5	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-6	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-7	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-8	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
m22759/14-12-9	12	37/28	22.3	0.086	0.103	0.111	Tin Coated Copper	-55°C	135°C	600V
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/10-20-9; white with orange stripe -M22759/10-20-93.
