MIL-W-22759/9 | SAE AS22759/9

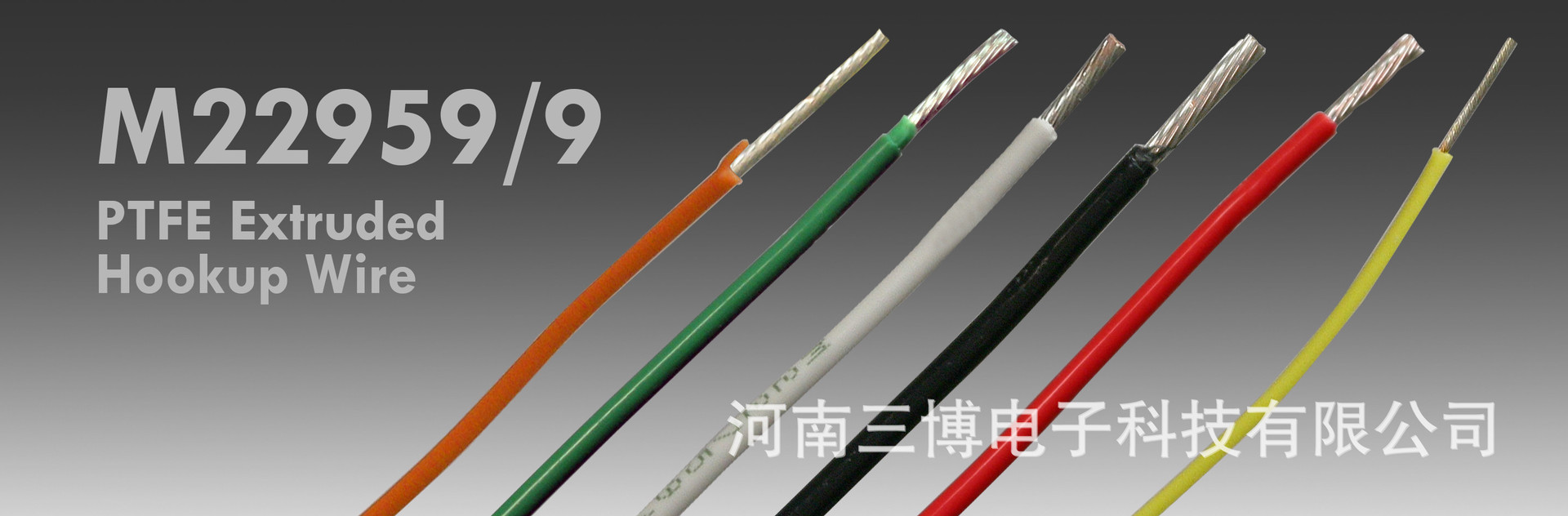

MIL-W-22759/9 (M22759/9)| SAE AS22759/9線纜
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。（應用：高溫耐磨損應用，例如飛機發動機應用及其他需要增加耐磨損性的方面）

The M22759/9 MIL Spec Wire may be used in aerospace applications or where high temperatures, smoke emission and flammability are a concern.（該M22759/9 MIL規格導線可以在航空航天應用或高溫，煙塵排放和可燃性關注中。）

SAE AS22759/9 Wire MIL Spec Wire
MIL-W-22759/9 Wire
M22759/9 Wire

Medium Wall（中壁厚）
CHARACTERISTICS:（產品特性）
M22759/9 Wire Construction:（m22759/9 線纜結構）
PRODUCT DESCRIPTION:（產品描述：）
Conductor: Stranded Silver Plated Copper（導體：絞合鍍銀銅）
Insulation: Extruded Polytetrafluoroethylene (PTFE) insulation，.010 Nominal Wall Thickness(絕緣體材質：膨化聚四氟乙烯，0.1公稱壁厚）

M22759/9 Wire Ratings:（m22759/9線纜等級）
Voltage: 1000 Volts（額度電壓：1000伏特）
Temperature Range：-55°C to 200°C（溫度范圍：-55攝氏度到200攝氏度）
線規范圍24-4
M27500 Component： LE （m27500代碼：LE)
Mil-Spec: M22759/9(軍標代碼：M22759/9）
SAE Spec：AS22759/9（SAE 代碼：AS22759/9）
Insulation Material： extruded PTFE insulation(絕緣體材質：擠出聚四氟乙烯）

MIL-W-22759/9 Wire Identification:（MIL-W-22759/9線纜識別方法）

Green or white print on the insulation（絕緣體上有綠色貨白色的印刷）
Military part number including AWG （軍標代碼包括線規號）

PART NUMBER	AWG	Conductor Stranding	Approx LBS/MFT	Nom. Dia. of Cond.	min O.D. (in)	Max O.D. (in)	Cond. Material	Min. Temp	Max. Temp	Voltage
M22759/9-28-0	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-1	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-2	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-3	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-4	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-5	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-6	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-7	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-8	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-28-9	28	7/36	2	0.015	0.041	0.045	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-0	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-1	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-2	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-3	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-4	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-5	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-6	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-7	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-8	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-26-9	26	19/36	3	0.019	0.046	0.05	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-0	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-1	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-2	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-3	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-4	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-5	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-6	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-7	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-8	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-24-9	24	19/38	4	0.024	0.051	0.055	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-0	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-1	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-2	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-3	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-4	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-5	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-6	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-7	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-8	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-22-9	22	19/34	5	0.03	0.058	0.062	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-0	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-1	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-2	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-3	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-4	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-5	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-6	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-7	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-8	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-20-9	20	19/32	7	0.038	0.066	0.07	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-0	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-1	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-2	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-3	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-4	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-5	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-6	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-7	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-8	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-18-9	18	19/30	9	0.047	0.076	0.08	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-0	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-1	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-2	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-3	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-4	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-5	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-6	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-7	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-8	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-16-9	16	19/29	11	0.053	0.083	0.087	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-0	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-1	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-2	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-3	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-4	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-5	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-6	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-7	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-8	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-14-9	14	19/27	17	0.067	0.097	0.103	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-0	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-1	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-2	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-3	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-4	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-5	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-6	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-7	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-8	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-12-9	12	19/25	24	0.084	0.116	0.124	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-0	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-1	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-2	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-3	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-4	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-5	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-6	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-7	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-8	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-10-9	10	37/26	38	0.108	0.137	0.145	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-0	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-1	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-2	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-3	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-4	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-5	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-6	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-7	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-8	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
M22759/9-8-9	8	133/29	69	0.162	0.202	0.212	Silver Plated Copper	-55°C	200°C	1000V
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/4-20-9; white with orange stripe -M22759/4-20-93.
